All posts

Testing vSphere and Proxmox Integrations With vcsim and mock-pve-api

By   ·  6 minute read

If you're writing software that talks to vSphere or Proxmox VE, you've hit this wall: there's no easy way to develop against a real cluster on your laptop, and your CI pipeline can't reasonably spin up hardware for every PR. You end up either (a) testing manually against a shared lab cluster that breaks for everyone when one engineer typos a maintenance-mode toggle, or (b) writing only unit tests with hand-crafted JSON fixtures that pass forever while production silently regresses on the wire format.

There's a third option: in-process simulators that speak the real APIs. This post covers the two we use to build OpIntel — vcsim for vSphere and mock-pve-api for Proxmox — including real bugs each one has surfaced and the gotchas you'll trip over.

vsphere proxmox simulators

TL;DR

  • For vSphere: simulator.VPX() from govmomi. Free, fast, in-process, no Docker. Scale up via model.Datacenter/Cluster/Host/Machine.
  • For Proxmox: ghcr.io/jrjsmrtn/mock-pve-api. Docker image, two default nodes, create VMs/CTs over the API, expect a few endpoint gaps and add fallbacks.
  • Gate the suite behind -tags=integration so unit tests stay fast.
  • Both will surface real wire-format bugs the first time you run them against your client. Budget time for that — it's the point.

vcsim — vSphere simulator that ships with govmomi

vcsim is a fully-featured vCenter simulator built into the govmomi Go SDK. It speaks SOAP, hosts a self-signed TLS endpoint, simulates the property collector, and supports power-on, snapshots, vMotion, alarms, performance counters, and most of the vim25 surface area. It's the same library every Go-based vSphere tool already imports, so adding the simulator is import .../simulator.

Spinning up a realistic cluster

The minimum is one line:

model := simulator.VPX()    // VPX = vCenter; ESX = standalone host
model.Create()
server := model.Service.NewServer()
defer server.Close()

// server.URL is now https://user:pass@127.0.0.1:<random-port>/sdk

But simulator.VPX() defaults are tiny (1 DC, 1 cluster, 2 hosts). To populate dashboards or stress-test inventory walks, override the model:

model := simulator.VPX()
model.Datacenter = 5    // 5 datacenters
model.Cluster = 12      // 12 clusters per DC
model.Host = 5          // 5 hosts per cluster
model.Machine = 60      // 60 VMs per cluster
model.Datastore = 5
model.Autostart = true  // power on VMs at create time

That's 5 × 60 × 12 = 3600 VMs across 300 hosts, all returning QuickStats and PerfCounter data. On a recent laptop, model creation takes ~5 seconds; the resulting in-memory state happily serves a five-thousand-VM collector cycle in under 15 seconds.

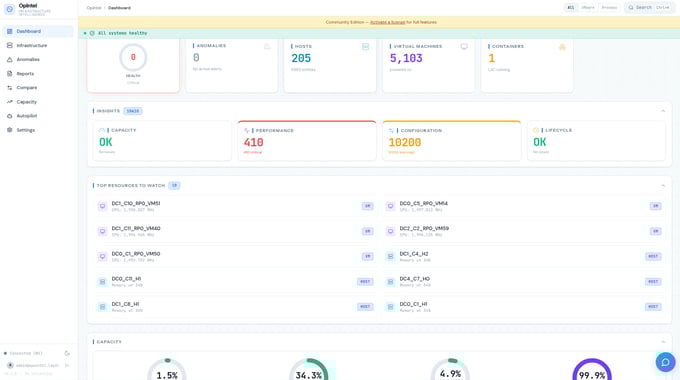

OpIntel dashboard large fleet view

If you don't want to write any glue code, govmomi also ships vcsim as a standalone binary with the same model knobs as CLI flags:

go install github.com/vmware/govmomi/vcsim@latest
vcsim -dc 5 -cluster 12 -host 5 -vm 60 -autostart -l 0.0.0.0:8989
# → export GOVC_URL=https://user:pass@127.0.0.1:8989/sdk GOVC_INSECURE=true …

Or run it without installing:

go run github.com/vmware/govmomi/vcsim@latest -dc 2 -cluster 4 -vm 40

The standalone binary doesn't power on VMs by default. If you want a more realistic mixed running/stopped state for dashboards, write a 30-line Go wrapper around simulator.VPX() that calls vm.PowerOn(ctx) on a percentage of guests after model.Create() — pattern is the same as the inline snippet above.

What vcsim is great at

  • Wire-format coverage. Every SOAP envelope, fault payload, and property-collector update goes over real HTTP. Bugs in your XML unmarshaling that pure unit tests would never catch surface immediately.
  • Performance counters. vcsim auto-generates plausible CPU/memory/disk/network numbers. Charts and heatmaps populate without any extra setup.
  • Task simulation. vm.PowerOn(ctx), host.EnterMaintenanceMode(ctx), and the like all return real Task objects you can .Wait() on. Good for testing your UPID/task tracking logic.
  • Fast. No JVM, no database, no API rate limits.

Where vcsim falls short

  • vMotion is mostly cosmetic. The simulator marks the VM as relocated but doesn't simulate the cost or duration realistically.
  • Some advanced read paths return empty. vSAN health, vCLS-related bookkeeping, certain extension manager calls — all pass through but return little.
  • Alarms are static. No alarm engine — alarms only fire if you manually trigger them.
  • vcsim itself can have bugs that are subtler than yours. It once shipped a release where host.summary.config.product.fullName was empty, breaking inventory display in any tool that relied on it.

Using vcsim in tests

Two patterns work well:

// Pattern A: per-test simulator (best for isolated unit-style tests)
func TestVMPowerOn(t *testing.T) {
    simulator.Test(func(ctx context.Context, c *vim25.Client) {
        finder := find.NewFinder(c)
        vm, _ := finder.VirtualMachine(ctx, "DC0_C0_RP0_VM0")
        task, _ := vm.PowerOn(ctx)
        if err := task.Wait(ctx); err != nil {
            t.Fatal(err)
        }
    })
}

// Pattern B: shared simulator via TestMain (best for integration suites
// that exercise the same large inventory across many tests)
var sharedURL string
func TestMain(m *testing.M) {
    model := simulator.VPX()
    model.Cluster = 8
    model.Create()
    s := model.Service.NewServer()
    sharedURL = s.URL.String()
    code := m.Run()
    s.Close()
    os.Exit(code)
}

mock-pve-api — Proxmox VE simulator in a Docker image

The Proxmox ecosystem doesn't have a govmomi-style first-party simulator, but ghcr.io/jrjsmrtn/mock-pve-api is the de-facto community option. It's a Python image that responds to a useful subset of the PVE 8.x REST API: nodes, storage, qemu, lxc, snapshots, migrate, backup jobs, firewall rules, SDN zones, cluster resources.

docker run --rm -d --name mock-pve -p 8006:8006 ghcr.io/jrjsmrtn/mock-pve-api:latest
curl -sk https://127.0.0.1:8006/api2/json/version
# {"data":{"version":"8.3","release":"8.3","keyboard":"en-us","repoid":"f123456d"}}

The mock ships with two nodes (pve-node1, pve-node2) and zero guests, but you can POST /nodes/pve-node1/qemu and POST /nodes/pve-node1/lxc to create VMs and containers in its in-memory state. Snapshots, power ops, migration, backup-create — they all return realistic UPIDs.

What mock-pve-api is great at

  • Wire format under TLS. Self-signed cert, real HTTP, real headers. This is the test surface you actually need.
  • Auth header semantics. Catches mistakes like sending an API token as a Cookie instead of Authorization: PVEAPIToken=….
  • UPID lifecycle. Most mutating endpoints return UPIDs and the task-status endpoint resolves them with endtime/exitstatus set, so your WaitForTask polling logic actually terminates.

Real bugs it surfaced for us

When we wired mock-pve-api into the OpIntel test suite, two production bugs surfaced on the first run:

  • Wrong auth header for PVE API tokens. Our client was sending Authorization: PVE:user@realm!tokenid=secret. Real PVE expects Authorization: PVEAPIToken=user@realm!tokenid=secret. Token-auth was completely broken in production; ticket-auth happened to work, so nobody noticed.
  • JSON unmarshal of nodeStatus.LoadAvg. PVE returns load averages as strings (["0.15", "0.08", "0.01"]); mock returned floats. Our struct typed it as []float64, so real PVE failed to parse. Custom UnmarshalJSON fixed both shapes.

We later added the same pattern for PBS (in-process httptest instead of Docker, since there's no maintained PBS mock) and surfaced an analogous bug in the PBS auth header path.

Where mock-pve-api falls short

  • /cluster/resources doesn't aggregate guests. Real PVE returns every node + qemu + lxc + storage in one call. The mock only returns nodes and SDN entries. If your collector treats /cluster/resources as the source of truth for inventory, you'll see zero VMs against the mock even after creating them. Fix: fall back to per-node /nodes/{n}/qemu and /nodes/{n}/lxc enumeration when /cluster/resources returns nodes but no guests. (We added this to OpIntel; it doubles as defensive code for pre-7.x PVE.)
  • No uptime on guests. The mock omits the uptime field from /status/current, so inventory views that infer power state from uptime show everything as "off" even after POST .../status/start. Workaround: have your collector emit a power_state tag derived from status (running → poweredOn, stopped → poweredOff).
  • No Ceph, no real subscriptions. Endpoints return 404 or empty.
  • State is per-container. Restart the container, you're back to two empty nodes. For demos, seed once at startup; for tests, treat each TestMain boot as a fresh cluster.

Two patterns that pay off

1. Integration tests behind a build tag

Both simulators run easily in CI, but you don't want them in every go test ./.... Gate them:

//go:build integration

package proxmox

func TestMain(m *testing.M) {
    if _, err := exec.LookPath("docker"); err != nil {
        os.Exit(0) // skip when no docker
    }
    // start mock-pve-api on a free port, wait for /version,
    // run m.Run(), tear down container
}

make test-proxmox-integration runs them locally; a separate CI job runs them on every PR. The default unit suite stays fast and Docker-free.

2. Sims as a local demo environment

Beyond tests, both sims work as drop-in dev infrastructure. A typical stack:

# Terminal 1 — vSphere
vcsim -dc 5 -cluster 12 -host 5 -vm 60 -autostart -l 0.0.0.0:8989

# Terminal 2 — Proxmox
docker run --rm -p 8006:8006 ghcr.io/jrjsmrtn/mock-pve-api:latest

# Terminal 3 — your app, pointed at both
export VSPHERE_URL=https://127.0.0.1:8989/sdk VSPHERE_USER=user VSPHERE_PASSWORD=pass
export PROXMOX_URL=https://127.0.0.1:8006 PROXMOX_USER=root@pam PROXMOX_PASSWORD=secret
./your-collector

Two terminals plus your binary, and you have a multi-DC vSphere cluster plus a two-node Proxmox cluster on localhost. New contributors can be running the full pipeline in a minute, with no VMware ELA, no Proxmox subscription, and no shared lab to break for everyone else.

When simulators aren't enough

Sims will never replace at least one staging cluster for:

  • Race conditions during real maintenance windows — vMotion stalls, storage path failover, vCenter heartbeat gaps.
  • Performance characteristics under load — the sim's "5000 VMs" return data instantly; a real vCenter doesn't.
  • Provider-specific quirks across versions — vCenter 7 returns fields vCenter 8 dropped, PVE 7 lacks endpoints PVE 8 added.
  • Anything cert/SSO/RBAC-related — sims are permissive by design.

The right mental model: sims catch wire-format and integration bugs; the staging cluster catches behavior bugs. Use both. Don't pretend either one is sufficient on its own.

⁂
