Use Python to Access the VMware vSphere REST API and Tanzu

As VMware administrators, we often need to collect and analyze data from our vSphere with Tanzu environments. Let's explore how to monitor a vSphere with Tanzu environment using the modern vSphere REST API approaches.

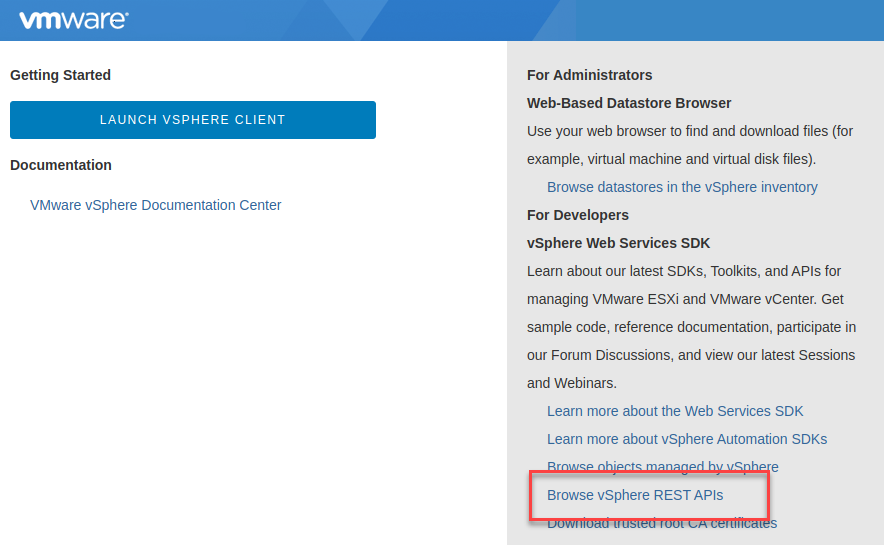

When manually logging in, you can find yourself in the API explorer, that is very neat to get started:

Authentication and Connection

• The modern vSphere REST API (7.0+) uses a more secure token-based authentication system:

  def authenticate():
session = requests.Session()
auth_url = f'https://{vcenter_server}/api/session'

response = session.post(
auth_url,
auth=(vcenter_user, vcenter_password),
verify=False # Replace with proper cert handling in production
)

token = response.json()
headers = {
'vmware-api-session-id': token,
'Authorization': f'Bearer {token}'
}
return session, headers



  This modern approach provides:

  • Bearer token authentication
  • Better security model
  • Simpler response handling
  • More consistent with modern API standards

Navigating the Tanzu Hierarchy

The modern API provides cleaner endpoints for navigating your Tanzu environment:

Performance Data Collection

The modern API provides a more streamlined approach to collecting performance metrics:

Error Handling and Retries

Modern implementations should include proper error handling and retry logic:

Batch Operations

For larger environments, batch operations are crucial:

Production Considerations

1. Certificate Management:

2. Token Management:

3. Resource Cleanup:

Best Practices for Implementation

1. Use Environment Variables:

2. Implement Logging:

The full script

import requests
import urllib3
import os
import sys
from datetime import datetime, timedelta
from typing import Dict, Optional
from pyVim import connect
from pyVmomi import vim
import ssl

# Disable SSL warnings
urllib3.disable_warnings(urllib3.exceptions.InsecureRequestWarning)

class VSphereMonitor:
    def __init__(self, vcenter_server: str, vcenter_user: str, vcenter_password: str):
        self.vcenter_server = vcenter_server
        self.vcenter_user = vcenter_user
        self.vcenter_password = vcenter_password
        self.si = None
        self.content = None

    def connect(self) -> bool:
       """Connect to vSphere using pyVmomi"""
       try:
           # Create SSL context
           context = ssl.SSLContext(ssl.PROTOCOL_TLS_CLIENT)
           # Disable hostname verification first
           context.check_hostname = False
           # Then disable certificate verification
           context.verify_mode = ssl.CERT_NONE
           # Set minimum TLS version to 1.2
           context.minimum_version = ssl.TLSVersion.TLSv1_2

           self.si = connect.SmartConnect(
               host=self.vcenter_server,
               user=self.vcenter_user,
               pwd=self.vcenter_password,
               sslContext=context
           )
           self.content = self.si.RetrieveContent()
           print("✅ Successfully connected to vSphere")
           return True
       except Exception as e:
           print(f"❌ Connection failed: {str(e)}")
           return False

    def get_first_vm(self) -> Optional[vim.VirtualMachine]:
        """Get the first VM found in the inventory"""
        try:
            container = self.content.viewManager.CreateContainerView(
                self.content.rootFolder, [vim.VirtualMachine], True
            )
            vms = container.view
            if vms:
                print(f"✅ Found VM: {vms[0].name}")
                return vms[0]
            else:
                print("❌ No VMs found in inventory")
                return None
        finally:
            if container:
                container.Destroy()

    def get_performance_metrics(self, vm: vim.VirtualMachine) -> Dict:
        """Get VM performance metrics"""
        perf_manager = self.content.perfManager

        # Define metrics to collect
        metric_ids = [
            vim.PerformanceManager.MetricId(counterId=x)
            for x in [2, 24, 125, 143]  # CPU Usage, Memory Usage, Disk Usage, Network Usage
        ]

        # Query spec for last 5 minutes
        end_time = datetime.now()
        start_time = end_time - timedelta(minutes=5)

        query = vim.PerformanceManager.QuerySpec(
            maxSample=1,
            entity=vm,
            metricId=metric_ids,
            startTime=start_time,
            endTime=end_time,
            intervalId=20
        )

        # Get the stats
        stats = perf_manager.QueryStats(querySpec=[query])

        if not stats:
            return {}

        # Process results
        metrics = {}
        counter_info = {c.key: c for c in perf_manager.perfCounter}

        for val in stats[0].value:
            counter = counter_info[val.id.counterId]
            instance = val.id.instance if val.id.instance else "total"
            value = val.value[0] if val.value else 0

            # Format based on units
            if counter.unitInfo.label == "percent":
                value = f"{value}%"
            elif counter.unitInfo.label == "kiloBytes":
                value = f"{value/1024:.2f} MB"
            elif counter.unitInfo.label == "kiloBytesPerSecond":
                value = f"{value/1024:.2f} MB/s"

            group = counter.groupInfo.key
            if group not in metrics:
                metrics[group] = {}

            metrics[group][f"{counter.nameInfo.key} ({instance})"] = value

        return metrics

    def cleanup(self):
        """Disconnect from vSphere"""
        if self.si:
            connect.Disconnect(self.si)
            print("✅ Successfully disconnected from vSphere")

def main():
    # Get environment variables
    vcenter_server = os.environ.get('VCENTER_SERVER')
    vcenter_user = os.environ.get('VCENTER_USER')
    vcenter_password = os.environ.get('VCENTER_PASSWORD')

    # Validate environment variables
    if not all([vcenter_server, vcenter_user, vcenter_password]):
        print("❌ Please set all required environment variables:")
        print("   VCENTER_SERVER, VCENTER_USER, VCENTER_PASSWORD")
        sys.exit(1)

    # Create monitor instance
    monitor = VSphereMonitor(vcenter_server, vcenter_user, vcenter_password)

    try:
        # Connect to vSphere
        if not monitor.connect():
            sys.exit(1)

        # Get first VM
        vm = monitor.get_first_vm()
        if not vm:
            sys.exit(1)

        # Get performance metrics

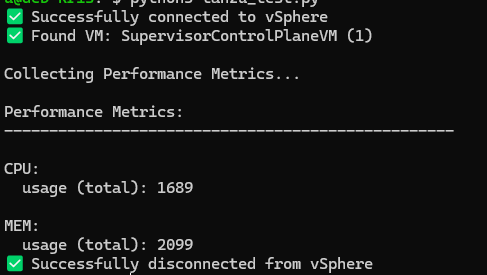

        print("\nCollecting Performance Metrics...")
        metrics = monitor.get_performance_metrics(vm)

        if metrics:
            print("\nPerformance Metrics:")
            print("-" * 50)
            for category, values in metrics.items():
                print(f"\n{category.upper()}:")
                for metric, value in values.items():
                    print(f"  {metric}: {value}")
        else:
            print("❌ No performance metrics available")

    except Exception as e:
        print(f"❌ Unexpected error: {str(e)}")
    finally:
        monitor.cleanup()

if __name__ == "__main__":
    main()


Conclusion

The modern vSphere REST API provides a more robust and secure way to interact with vSphere with Tanzu environments. Key benefits include:

• Better security with token-based authentication
• More consistent API endpoints
• Better support for modern development practices
• Improved error handling and response formats

Remember to:

• Always handle errors appropriately
• Implement proper certificate validation in production
• Use rate limiting for large-scale operations
• Clean up resources properly
